Polarizers

Lighting and camera polarizers to remove highlights and shine effects.

The polarizer eliminates glare caused by the lighting on parts to control. The camera can then analyze the part, without being disturbed by the glow effects.

The polarizer can be useful to perform quality control on parts packed in transparent plastic bags.


Polarizers

Vision of a camera lit by a standard Effi-FD for industrial vision and quality control Vision of a camera lit by an Effi-FD equipped with a Polarizer for industrial vision and quality control


EFFI-Flex/-Flex2/-Flex-LG EFFI-Ring EFFI-Smart EFFI-BL & EFFI-FD Camera

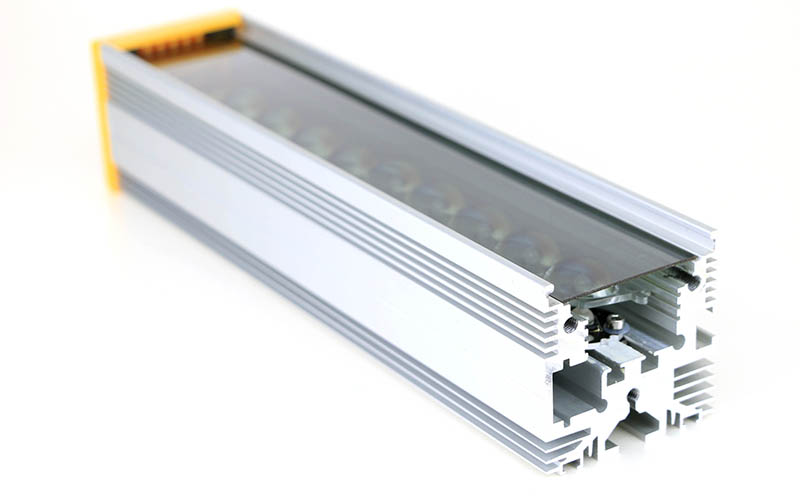

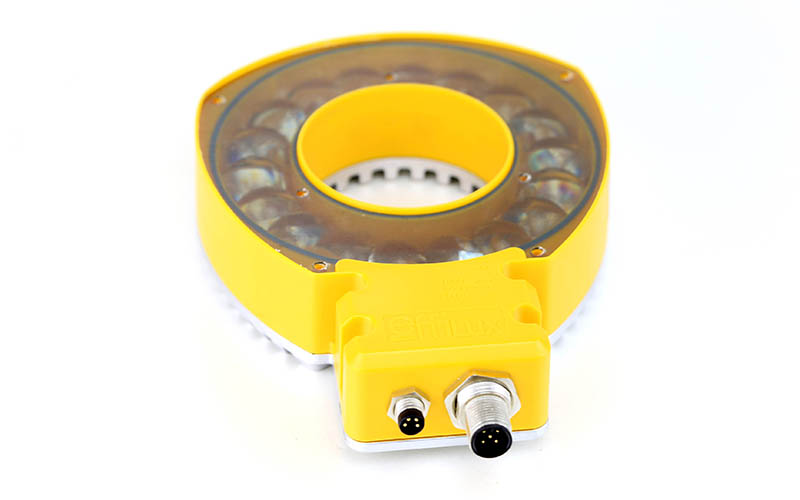

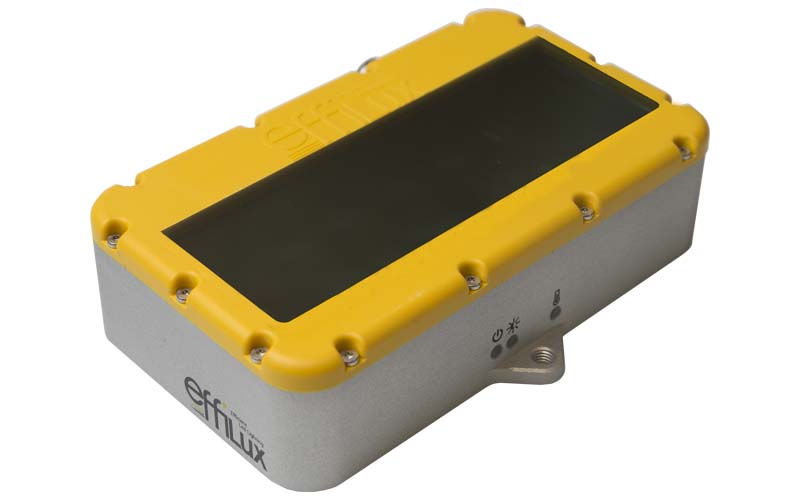

EFFI-Flex equipped with a polarizer to remove glare from the lighting on the parts to be controlled. EFFI-Ring equipped with a polarizer to remove the reflections of the lighting on the parts to be controlled. EFFI-Smart equipped with a polarizer to remove the reflections of the lighting on the parts to be controlled. EFFI-BL and EFFI-FD equipped with a polarizer to remove the reflections of the lighting on the parts to be controlled. Camera equipped with a polarizer to remove glare from the lighting on the parts to be controlled.
EFFO-FLEX2-POL-XXXX*
(Old: EFFO-FLEX-POL-XX**)		 EFFO-RING-POL EFFO-SMART-POL-XX** BL: EFFO-BL-POL-XXX-YYY-KIT
FD: EFFO-FD-POL-XXX-YYY-KIT 		Ø25.5 : EFFO-FLR-PR032-M25.5
Ø27 : EFFO-FLR-PR032-M27
ØXX : EFFO-FLR-PR032-MXX

* XXXX : Optical length
** XX : Number of LED

logo infoThe standard polarizer is not suitable for continuous mode use of blue or white light. For this kind of application, the high durability polarizer is necessary. Please contact Effilux.
