EFFC-CAB Cable

Cables for connecting the power supply and the EFFI-Product | Used for machine vision and quality control.

- Standard cables -

Connectivity Type Orientation Length Part number Compatibility
M12 - 5 pins Female - Flying leads Straight - Flying leads 2 m EFFC-CAB-M12-F-5-D-L2 EFFI-Flex, EFFI-Flex-CPT, EFFI-Flex-LG, EFFI-BL, EFFI-FD, EFFI-Smart
EFFI-Ring en mode classique, EFFI-SDome/SRing avec SWITCH 4 channel
EFFI-Sharp, EFFI-Lase, EFFI-Tele, EFFI-SBL en Version standard
EFFI-Lase-CPT, EFFI-Lase-PSV, EFFI-Sharp-CPT, EFFI-Sharp-PSV en Version passive (PSV)
EFFI-LSBR, EFFI-SBHS, EFFI-RLSW, EFFI-RLSQ, EFFI-RLLA, EFFI-COAX
Gamme TMS
5 m EFFC-CAB-M12-F-5-D-L5
10 m EFFC-CAB-M12-F-5-D-L10
Female - Male Straight - Straight 2 m EFFC-CAB-M12-FM-5-DD-L2
5 m EFFC-CAB-M12-FM-5-DD-L5
10 m EFFC-CAB-M12-FM-5-DD-L10
M12 - 5 pins - status LED Female - Flying leads Angled - Flying leads 5 m EFFC-CAB-M12-F-5-C-L5-LED
10 m EFFC-CAB-M12-F-5-C-L10-LED
Female - Male Angled – Straight* 2 m EFFC-CAB-M12-FM-5-CD-L2-LED
M12 - 8 pins Female - Flying leads Straight - Flying leads 2 m EFFC-CAB-M12-F-8-D-L2 EFFI-SDome/SRing
5 m EFFC-CAB-M12-F-8-D-L5
10 m EFFC-CAB-M12-F-8-D-L10
Female - Male Straight - Straight 2 m EFFC-CAB-M12-FM-8-DD-L2
5 m EFFC-CAB-M12-FM-8-DD-L5
10 m EFFC-CAB-M12-FM-8-DD-L10
M12 Power - 4 pins Female - Flying leads Straight - Flying leads 2 m EFFC-CAB-M12P-F-4-D-L2 EFFI-Flex, EFFI-Flex-CPT, EFFI-Flex-LG, EFFI-BL, EFFI-FD with M12 power connector
(please refer to product’s documentation)
5 m EFFC-CAB-M12P-F-4-D-L5
10 m EFFC-CAB-M12P-F-4-D-L10
M12 Power - 4 pins Female - Male Straight - Straight 2 m EFFC-CAB-M12P-FM-4-DD-L2
5 m EFFC-CAB-M12P-FM-4-DD-L5
10 m EFFC-CAB-M12P-FM-4-DD-L10
M8 - 3 pins Female - Flying leads Straight - Flying leads 2 m EFFC-CAB-M8-F-3-D-L2 EFFI-Sharp, EFFI-Lase and EFFI-Tele in strobe version (STR)
5 m EFFC-CAB-M8-F-3-D-L5
10 m EFFC-CAB-M8-F-3-D-L10
M8 - 4 pins Female - Flying leads Straight - Flying leads 2 m EFFC-CAB-M8-F-4-D-L2 EFFI-Ring in strobe mode
5 m EFFC-CAB-M8-F-4-D-L5
10 m EFFC-CAB-M8-F-4-D-L10
M8 - 8 pins Female - Flying leads Straight - Flying leads 2 m EFFC-CAB-M8-F-8-D-L2 EFFI-SBL in strobe version (STR)
EFFI-Lase-CPT, EFFI-Sharp-CPT
5 m EFFC-CAB-M8-F-8-D-L5
10 m EFFC-CAB-M8-F-8-D-L10
RD24 - 4 pins Female - Flying leads Straight - Flying leads 2 m EFFC-CAB-RD24-F-4-D-L2 EFFI-Line
5 m EFFC-CAB-RD24-F-4-D-L5
10 m EFFC-CAB-RD24-F-4-D-L10

* Status LEDs are placed. At the angled end of the cable

- Custom cables -

Build the reference of your cable following these steps.

EFFC-CAB
-VVV
-WW
-X
-YY
-ZZZ
Type
Ending
Number of pins
Orientation
Length
Options
M12 (standard)
M12P (T-coded)
M8
RD24
JAEG
F (female - flying leads)
M (male - flying leads)
FM (female – male)
MF (male – female)
MM (male – male)
FF (female – female)
3
4
5
8
D (Straight - Flying leads)
C (Angled – Flying leads)
DD (Straight – Straight)
CC (Angled – Angled)
DC (Straight – Angled)
L2
L5
L10
L20
-LED (with status LED)
-HFLEX (High flexibility)
Shielded
Specific sheath

- T-connector accessory -

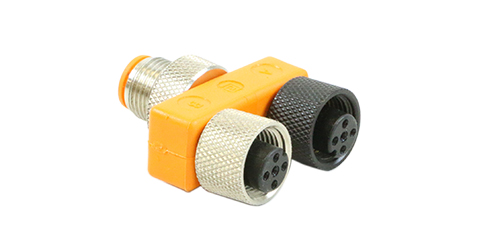

T-connector with two M12 female connectors.

EFFILUX adapter for doubling the cables, 1 M12 male input to 2 M12 female outputs

Please contact EFFILUX.
