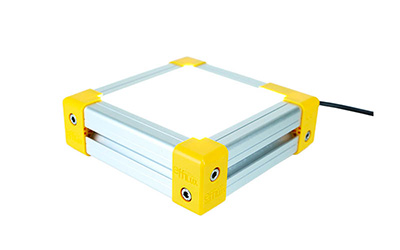

The EFFI-BL is a powerful and robust LED backlight. It offers exceptional contrast, high intensity & uniformity to provide a superior solution for backlight inspections.

Typical application: control the specific parameters of an object (contour, shape, hole, morphology)

  • Excellent uniformity greater than 90%
  • Anti-reflection system to absorb unwanted reflections from interfering light
  • Built-in dimming controller to offer convenient and precise Analog Intensity Control
  • Easily customizable

Logo 90% Homogénéité
EFFI-BL | Powerful homogeneous LED backlight backlight for machine vision and quality control.

- Build your part number -

EFFI-BL

- - -

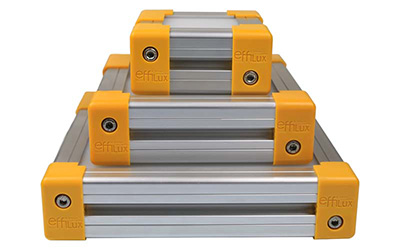

optical width (mm) optical length (mm) Wavelengths (nm) *XXX ≤ YYY
Available Options Refer to the detailed information below for any specific reference (with options, customized, ...).

- Product Information -

- Available wavelengths -


Color Blue Green Red IR White
(T°= 5700 k ± 700 K)
ZZZ : wavelength (nm) 465 525 625 850 000

All sizes up to 1m² are available in 50mm increments. Contact Effilux for larger dimensions

Part number : EFFI-BL-XXX-YYY-ZZZ

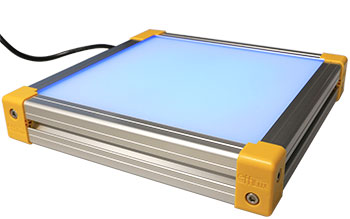

Effilux LED backlight EFFI-BL is available in different colors/wavelengths according to customer needs.

- Additional options -

> Option: Polarizer

In the case of backlight applications, the polarizer is used to highlight solder, hole or differences in thickness in transparent materials.

Option available for EFFI-BL with a width under 400mm.

First solution : Add-On
Attach and remove the polarizer on top of the product when necessary.
This accessory kit must be ordered separately in addition to the product and to be installed on top of the light by the user.

Second solution : Built-In
Polarizer to be installed on top of the opaline window by manufacturer during production.
This option must be ordered together with the light as the polarizer cannot be installed by the user at later stage.

For the part number reference, please refer to the document : POLARIZER
Please refer to this pageto order the polarizer accessory kit seperately.

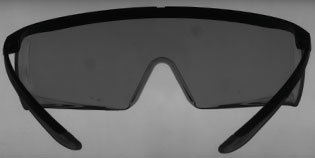

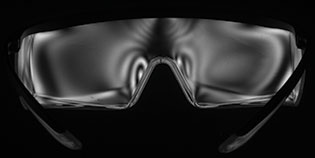

Vision of a camera illuminated by a standard EFFI-Flex for machine vision and quality control. Vision of a camera illuminated by an EFFI-Flex equipped with a Polarizer for machine vision and quality control.

> Option: Zebra

The zebra mask is used by EFFILUX in metrology and deflectometry to reveal defects (stripe, impact, or positioning, etc.) on reflective, transparent, or semi-transparent surfaces. For more information on these applications, please refer to this page.

Part number: EFFI-BL-XXX-YYY-ZZZ-MMM

To include zebra option, please add -MMM (4mm, 5mm, ...) in the part number reference.
Please contact us for futher information.


Difference between two shots of a glass vial. One with zebra technology and the other without

> Option: Collimation film

The Collimation film allows the user to collimate the light and reduce the angle of emission to achieve sharp and clear silhouette for precise measurement inspection.

Option available for EFFI-BL under 300mm by 300mm.

First solution : Add-On
Accessory kit to attach the collimated film(s) on top of the product.
This accessory kit must be ordered seperately from the product and to be installed on top of the product by the user.

Second solution : Built-In
Collimation film(s) to be installed directly on top of the opaline window of the product when manufactured.
The complete product must be ordered, the colllimation film(s) cannot be installed by the user.

For the part number reference, please refer to the document : COLLIMATION_FILMS
Please refer to this page for more information about the Add-On solution.

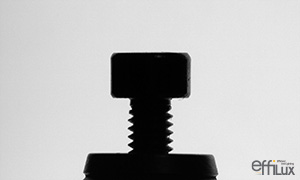

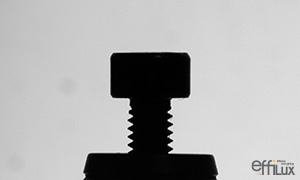

EFFI-BL without collimation film EFFI-BL with collimation film helps collimate the light and reduce the angle of emission

You can find the drawing and the weight of the products in the technical doc page.

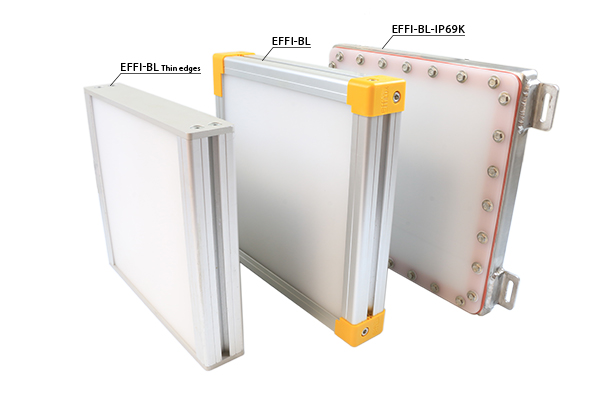

See the different EFFI-BL (EFFI-BL / EFFI-BL Thin edges / EFFI-BL-IP69K)

- Mechanical versions EFFI-BL -


Sealing Thickness Small footprint Smooth walls
(Anti-dust)
Food Version
Standard Version
EFFI-BL
43.20mm
Thin edges
EFFI-BL-XXXT-YYY / EFFI-BL-XXX-YYYT
40mm
Stainless-steel Version
EFFI-BL-IP69K
35.60mm

logo infoEFFILUX offers various dimensions for EFFI-BL and EFFI-BL fine edges, up to 1.5 m in steps of 50mm.
The EFFI-BL is equipped with a T-NUT M6 groove along its 4 sides. Compatible fixing accessories are available.
Custom: EFFILUX can easily offer IP67 Backlight product upon request.

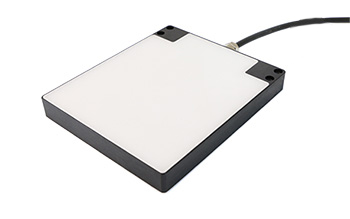

In addition, for applications requiring even more compact backlight illumination, Effilux offers the EFFI-SBL , IP67 backlights.

> Option: Thin edges

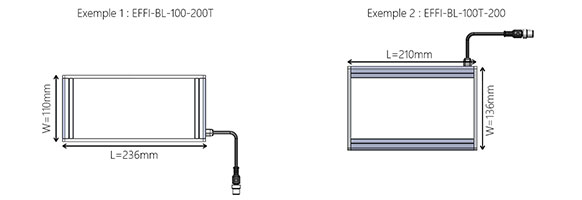

Explanatory diagram representing the dimensions of the components of the Effi-BL-100-200T and Effi-BL-100T-200 with fine edges for industrial vision and quality control

logo infoThin Edges: Add a 'T' after the dimension if you require thin edge design.

Please contact us for CAD file that are not available on this site or for larger dimensions.

> Option: Slot cover

In the clean room, crevices, holes and abrasive surfaces should be avoided to better prevent the accumulation of impurities. Effilux recommends to add plastic groove cover on the profile of the EFFI-BL to guarantee a clean and suitable finish.

Part number : EFFI-BL-XXX-YYY-ZZZ-CR

For the yellow groove cover add -CR (Clean Room) at the end of the part number reference.
The four covers are delivered separately. Please contact Effilux for more information.

Slot cover mount on an EFFI-BL

> Connector positions

Number of connectors Connector type
Connector position (s)
EFFI-BL Standard: On the longest side EFFI-BL Thin Edges: On the side with standard edges
1
M12 Standard 35mm from the edge of the product
15mm from the edge of the product
M12 Power 90mm from the edge of the product
75mm from the edge of the product
Many
M12 Standard or M12 Power First 90mm connector
Space between 2 cable glands: 60mm
First 75mm connector
Space between 2 cable glands: 60mm

- Connectivity -

The EFFI-BL is supplied directly with 24V DC via one or more M12 - 5 pins, or M12 power 4 - pins, depending on the electrical consumption of the product. Attention, the AIC pin must be connected.

Characteristics of the 4-pin M12 connector used to power the Effi-BL for machine vision and quality control
Pin number Designation Cable color
1 +24V Brown
2 N/A white
3 GND blue
4 AIC black
5* N/A Grey

*Exists only with M12 - 5 pins


For an EFFI-BL with multiple connectors, the only AIC signal taken into account is that of the connector closest to the angle of the product.


Power Number of connectors
Up to 70 W 1X M12
70W - 140W 2X M12 or 1X M12 Power
145W - 270W 3X M12 or 1X M12 Power
275W - 560W 2X M12 Power
Up to 560W Specific configuration

Please refer to the datasheet for details of the electrical consumption of each EFFI-BL

logo info For devices operating at 150mA, the number of connectors will have to be discussed.

- AIC Control -

> Control range

The output optical power of the EFFI-BL is adjustable from 20% to 100% by applying a signal from 0V to 24V on the AIC pin.

The control range can be changed to 0-10V or 0-5V on request.

> Operation

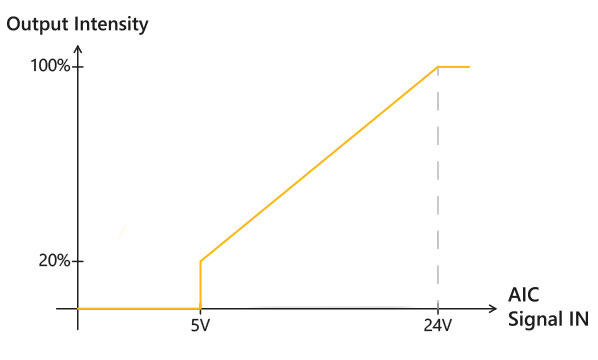

Graphic representing the light produced by an Effi-BL as a function of the current received thanks to a AIC pin - Used for machine vision and quality control

- Option: POWER Version & HIGH POWER Version -



Standard Version


POWER Version ("S150")


logo infoFor POWER Version (only available in white), please add -S150 at the end of the part number reference.
It is mandatory to use with a duty cycle ‹ 30%.

Part number: EFFI-BL-XXX-YYY-S150


logo infoFor HIGH POWER Version, please add -S600 at the end of the part number reference.
It is mandatory to use with a duty cycle ‹ 5%.
Available only in step sizes 100mm by 100mm.

Part number: EFFI-BL-XXX-YYY-S600

Please contact us for more information.

- Optical accessories -

- Mechanical accessories -

- Electronic accessories -

- Available upon request -


Wavelength

Form

Great Dimension

IP67 version
