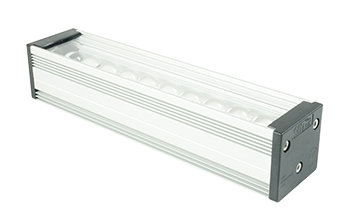

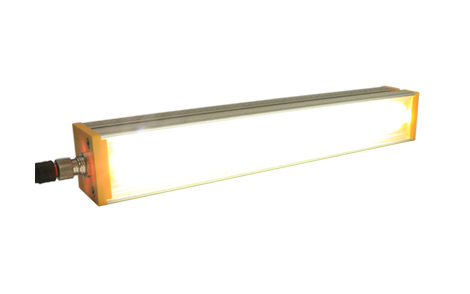

EFFI-Flex Adjustable beam angle LED bar

The EFFI-Flex LED bar is equipped with high power LEDs , it provides multiple solutions in a single light by offering different lens positions.

It is available in a variety of colors, compact and easy-to-mount due to its industrial profile. Thanks to the different diffusers and optical accessories, the EFFI-Flex offers direct, low-angle or diffused lighting suitable for many machine vision applications, robotics, logistics, etc.

  • Flexibility in the choice of diffuser and emission angle (from 90° to 10°) to find the right compromise between power, illuminated area and uniformity
  • Integrated controller with Auto-Strobe feature allowing for 300% increased intensity while being strobed when compared to continuous mode.
  • A Robust design for applications in harsh environments

Datasheet
User manual
General CAD
Product configurator
Obsolescence page

- Build your part number -

EFFI-Flex

 - - - -
Number of LED Available wavelengths (nm) Windows Lens position

Available options



For any reference with options or customizations, refer to the corresponding technical specifications tabs for more details.

- Technical specifications -


Optical Mechanical & CAD Electronic Accessories Custom Video Similar products

- Length depending on number of LED -


XXX : number of LED 1 3 5 10 15 in 5 LED increment
Optical length Standard version (LED pitch = 20mm) 20mm 60mm 100mm 200mm 300mm Max 2900mm (145 LED)*
Version 1 LED / 2 positions (LED pitch = 40mm) - - 200mm 400mm 600mm Max 2900mm (70 LED)*

* For standard lead time. Ask EFFILUX for longer sizes (up to 6m).

Part number: EFFI-FLEX-XXX...

logo info- For the 1 LED / 2 positions type, add -L2 (Length x 2) before the number of LEDs [EFFI-FLEX-L2-XXX…]

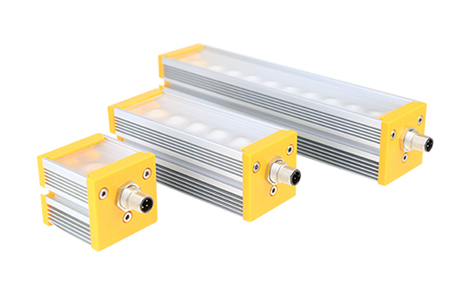

Different sizes of EFFI-Flex depending on the number of LEDs.

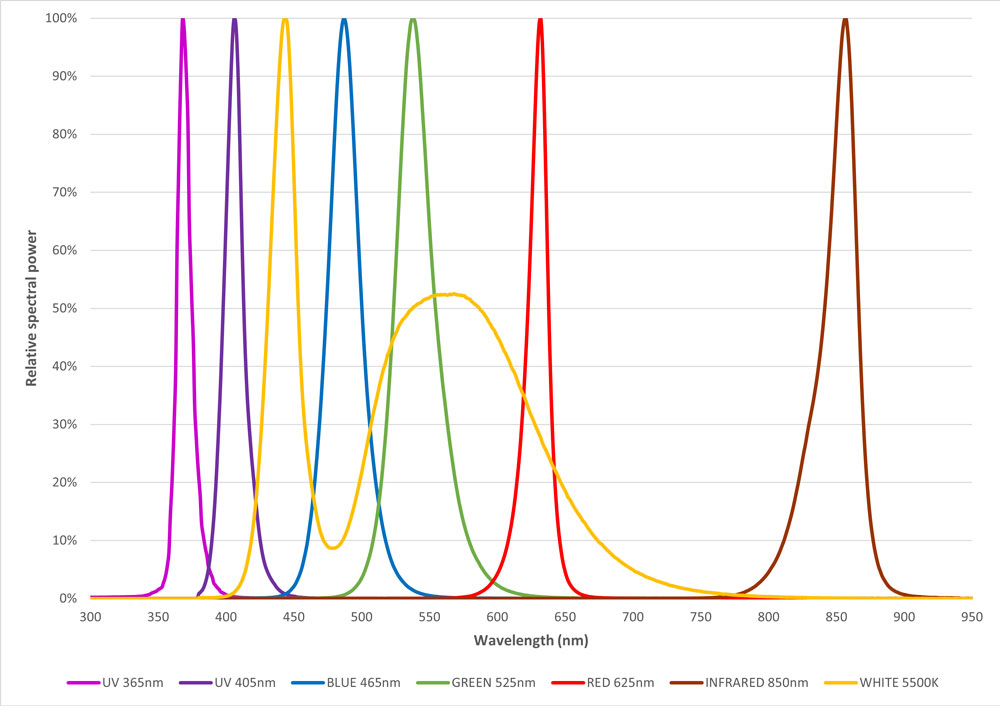

- Available wavelengths -


Color ● UV* ● Blue ● Green ● Red ●IR ○ white
(T°= 5500K ± 500K)
ZZZ : wavelength (nm) 365 405 465 525 625 850 000

*For UV 365: no lens provided (lens is not supported) and special UV treated window is used.

Part number : EFFI-FLEX-XXX-ZZZ...

logo infoAny other wavelength available upon request.
For example : 385mm, 660nm, 740nm, 940nm, ...

Example of EFFI-Flex with UV wavelength.

> Option: Multispectral

EFFI-Flex bicolor :
The driver is integrated in the EFFI-Flex from 10 LEDs,
otherwise the driver is outsourced.
Part number : EFFI-FLEX-XXX-ZZZ-ZZZ...
Example : EFFI-FLEX-XXX-465-525...


Diagram showing the distribution of LEDs on a two-color EFFI-Flex - Used for machine vision and quality control.

EFFI-Flex Tricolor :
The driver is integrated into the EFFI-Flex from 9 LEDs
otherwise the driver is outsourced.
-If RGB:
Part number : EFFI-FLEX-XXX-RGB...

-If WUI (White-UV-IR):
Part number : EFFI-FLEX-XXX-WUI...

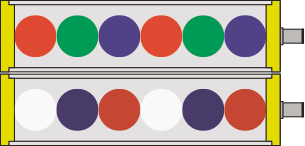

Diagram showing the distribution of LEDs on a three-color EFFI-Flex - Used for machine vision and quality control.

Effilux offers a 3-way potentiometer to independently control each color.

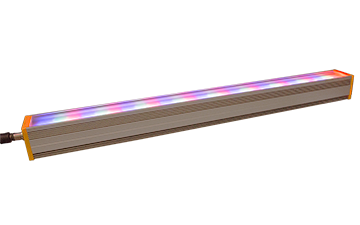

Product Overview EFFI-Flex Tricolor or Bicolour - Used for machine vision and quality control.

> Option: Hyperspectral Version

EFFI-FLEX Hyperspectral :
Vis-NIR broadband hyperspectral LED bar created from a single, continuous spectrum source.
Part number : EFFI-FLEX-HSI-XXXX-WW-PP (XXXX: Optical length)



For more information on Effilux multi and hyperspectral technologies and possible spectra,
please refer to this page .




> Option: SWIR Version



EFFI-Flex is also available in Effilux's SWIR range.
Available wavelength: 980nm, 1050nm, 1150nm, 1200nm, 1300nm, 1450nm, 1550nm, 1650nm.

For more information Contact Effilux

- Windows -


TR : Transparent
SD : Semi-diffusive
OP : Opaline

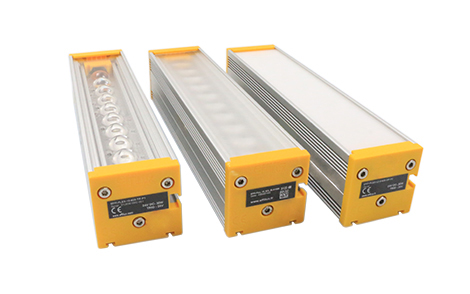

Presentation of the different types of Transparent / Semi-Diffuse / Opaline glass available on the

EFFILUX offers different types of interchangeable windows to supply a good compromise between power and homogeneity according to the requirements and material of the inspection.

See optical accessory window


Part number : EFFI-FLEX-XXX-ZZZ-WW...

logo infoIf not specified, default semi-diffuse window (SD)


- Emission angle according to the lens position -


Presentation of the different lenses available on the EFFI-Flex.

EFFI-Flex offers 4 lens configurations, manually adjustable to change the emission angle.

Position P0 P1 P2 P3
Angle
Présentation de l'angle d'émission à 90° d'un Effi-Flex sans lentille
90° : Without lens
Présentation de l'angle d'émission à 45° d'un Effi-Flex équipé d'une lentille placée en position 1
45°
Présentation de l'angle d'émission à 25° d'un Effi-Flex équipé d'une lentille placée en position 2
25°
Présentation de l'angle d'émission à 10° d'un Effi-Flex équipé d'une lentille placée en position 3
10°


Part number : EFFI-FLEX-XXX-ZZZ-WW-PP

logo infoIf not specified, default P2 position

- Additional options -

> Option: Polarizer

Using the Polarizer accessory, it is possible to eliminate glare from the workpiece making it easier to acquire a suitable image for the application with no hot spot.


Part number : EFFI-FLEX-XXX-ZZZ-WW-PP-POL
POL : polarizer accessory

If polarizer, add -POL in the part number
Possibility to buy only the accessory, see part number here
logo infoThe standard polarizer is not suitable for continuous mode use of blue or white light. For this kind of application, the high durability polarizer is necessary.Available up to EFFI-Flex-45.
If high durability polarizer, add -POL-HDY in the part number.

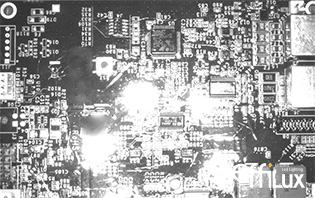

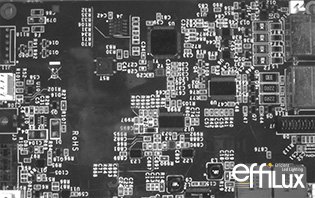

Vision of a camera lit by a standard Effi-FD for industrial vision and quality control Vision of a camera lit by an Effi-FD equipped with a Polarizer for industrial vision and quality control

> Option: Linescan

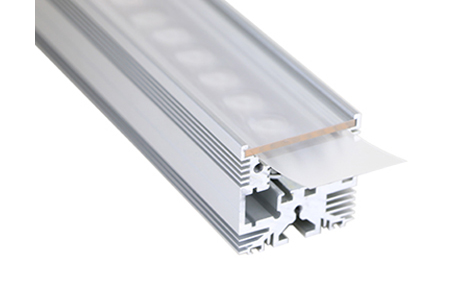

With the lens in the upper position, the Linescan accessory transforms the EFFI-Flex light into a uniform line light ideal for either brightfield or darkfield illumination.


Part number : EFFI-FLEX-XXX-ZZZ-TR-P3-LS
LS : linescan accessory

If flex-linescan, add -LS in the part number
Possibility to buy only the accessory, see part number here

Vision of a camera illuminated by a standard EFFI-Flex for machine vision and quality control. Vision of a camera illuminated by an EFFI-Flex equipped with a Linescan for machine vision and quality control.

> Option: Cylindrical lens

Part number : EFFI-FLEX-XXX-ZZZ-TR-P1-LS-CYL
CYL : external cylindrical lens accessory

If Flex cylindrical, add -CYL in the reference.
Classic configuration: EFFI-FLEX-XXX-ZZZ-TR-P1-LS-CYL.

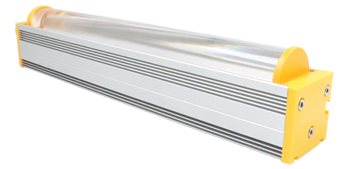

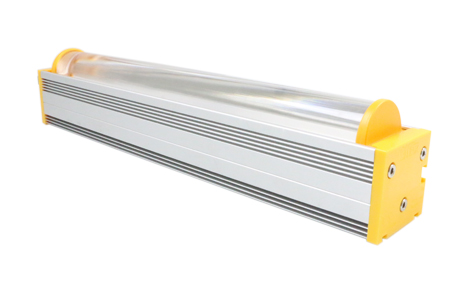

Presentation of a cylindrical EFFI-flex, realized by Effilux for the industrial vision and the quality control

> Option: Pure UV

Used with the 365nm EFFI-Flex, the PureUV technology is an innovative system that drastically improves the fluorescence effect while concurrently removing glare and improving contrast.


Part number : EFFI-FLEX-XXX-365-TR-P0-PUV
If Flex Pure UV, add -PUV in the reference.

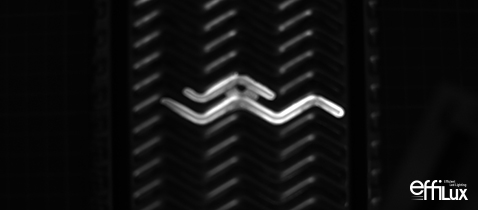

sans avec

- Drawings -

> General drawing



General drawing
PDF logo
Generic EFFI-Flex plan, so customers can have the dimensions of the complete bar
Optical Length
Standard version Lop= 20mm x Number of LEDs
L2 Version (1 LED / 2 positions) Lop= 40mm x Number of LEDs

> CAD files

Version 1 LED 3 LED 5 LED 10 LED 15 LED 20 LED 25 LED 30 LED ...
length (mm)
Standard version		 Up to 6m
length (mm)
L2 Version (1 LED / 2 positions) 		- - Up to 6m

You can find the drawing and the weight of the products in the technical doc page.

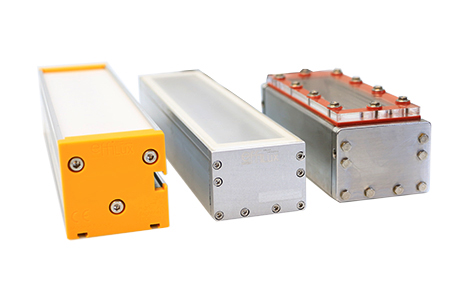

- EFFI-FLEX mechanical versions -


Sealing "Openable" body Water cooling
(For high power)		 Smooth walls
(Anti-dust)		 Food Version
Standard Version
EFFI-FLEX
Compact Version
EFFI-FLEX-CPT
Stainless-steel Version
EFFI-FLEX-IP69K

The EFFI-FLEX has one T-slot on the back for 8mm T-nut (M6 recommended), and one slot on the side for M6 hex nut. Effilux offers compatible mounting solutions.

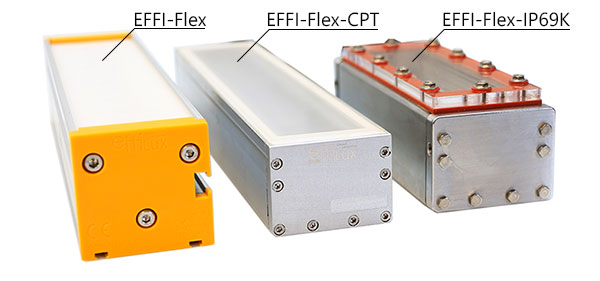

See the different EFFI-Flex (EFFI-Flex / EFFI-Flex-CPT / EFFI-Flex-IP69K)

- Auto-Strobe Version (Standard) -

> Connectivity

The EFFI-Flex requires 24V DC input power via an M12 – 4 pins connector. Note the trigger pin needs to be connected either to the 24V DC signal for Continuous mode or to a PNP Trigger signal for Overdrive strobe mode.

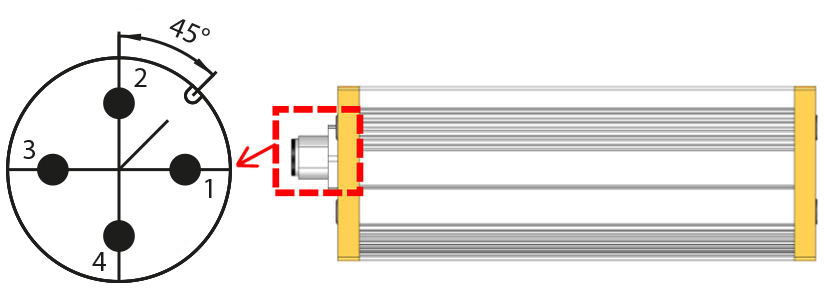

Connections 4 Pin EFFI-Flex for industrial vision and quality control.
Pin number Designation Cable color
1 +24V Brown
2 n.a. white
3 GND blue
4 TRIGGER PNP [rising edge trigger] for Auto-Strobe
Lighting on if V PNP > 3V DC
Max 24V DC		 Black

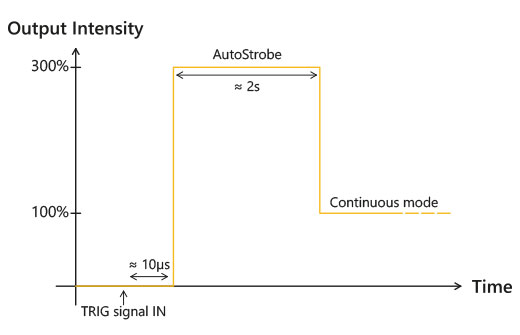

> How the Auto-Strobe works

Graphical representation of the output intensity curve of the Effi-Flex Auto-Strobe driver overdrive
Effi-flex ELS Strobe lighting led bar high power direct or grazing or backlight for industrial vision and quality control

> Option: NPN connection

On request, Effilux can wire the pin 2 of the M12 connector for use in NPN [trigger on falling edge] for the Auto-Strobe.
In this case, Lighting on if VNPN < 1.5V DC.

Part number : EFFI-FLEX-[...] - NPN

- Option: ELS Mode -


The standard product (Auto-Strobe) is not dimmable, EFFILUX offers an alternative electronic configuration suitable for continuous use and linescan applications. This version allows the intensity to be controlled according to the input signal (AIC): ELS Mode.

> Connection

- The EFFI-Flex with ELS driver requires 24V DC input power via an M12 – 4 pins connector. Note the AIC pin needs to be connected either to the 24V DC signal for 100% maximum intensity or to an Analog Intensity Control signal for adjusted intensity

Connections Pin Effi-Flex for industrial vision and quality control
Pin number Designation Cable color
1 +24V Brown
2 n.a. White
3 GND Blue
4 AIC: Analog control of intensity
Max 24V DC		 Black

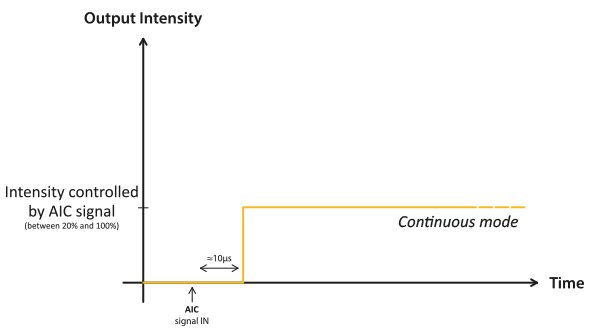

> AIC control


Graphical representation of the output intensity curve of the Effi-Flex Auto-Strobe driver overdrive
Effi-flex ELS Strobe lighting led bar high power direct or grazing or backlight for industrial vision and quality control

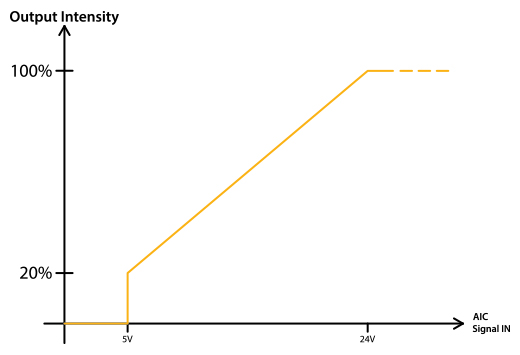

Control of the output intensity according to the input AIC signal

Effi-flex ELS Strobe lighting led bar high power direct or grazing or backlight for industrial vision and quality control

Part number : EFFI-FLEX-[...]*-ELS-VVV-UUU
VVV : output current (100%), default 350.

logo info More powerful versions are also available, requiring special cooling, contact Effilux for more information.

UUU : DIM control range (5V, 10V or 24V)
Version ELS-IN: Inverse version (max of intensity to DIM = 0V)

- Response time -


Designation Time (built-in driver)
Rise time ( TM ) 8µs
Response rise time ( TRM ) 5µs
Fall time ( TD ) 5µs
Response fall time ( TRD ) 5µs



- Optical accessories -

Transparent, semi-diffused, opaline glass | interchangeable for compromise between power and homogeneity.

Windows

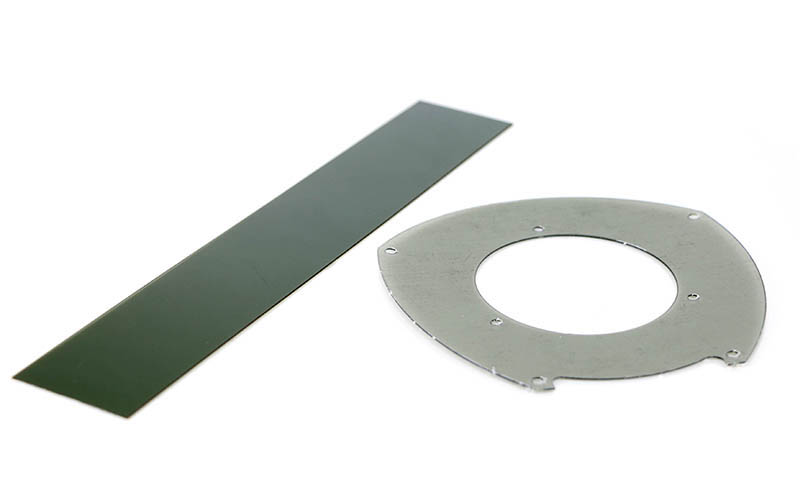

Lighting and camera polarizers to remove highlights and shine effects.

Polarizers
Linescan to turn LED bar into linear or grazing light.

Linescan

- Mechanical accessories -

Effi-Square Multiple LED Bars for Industrial Vision and Quality Control

EFFI-Square

Multiple EFFI-FLEX barlights system
different lighting fixture

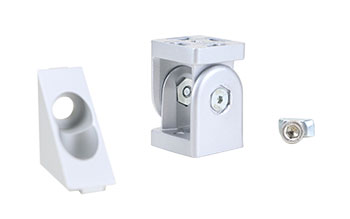

Mounting solutions

Light Brackets & Fasteners

- Electronic accessories -

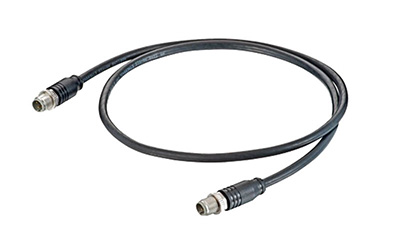

Range of cables that can be adapted to all uses of our products

Cables

- Available upon request -

Custom cap

Other positions of connector

multispectral RGBW


For all other inquiries, please contact EFFILUX.

- Video -


- Similar products -

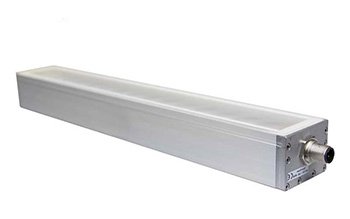

Waterproof LED strip EFFI-Flex-IP67 for quality control and industrial visibility

EFFI-Flex-CPT

New IP67 waterproof LED strip.

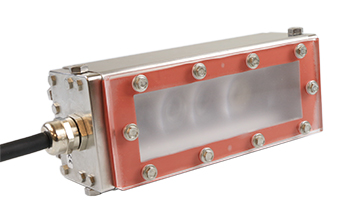

Effi-Flex IP69K - High performance direct or grazing light illumination or backlight for industrial vision and quality control for the food industry and washing environments
