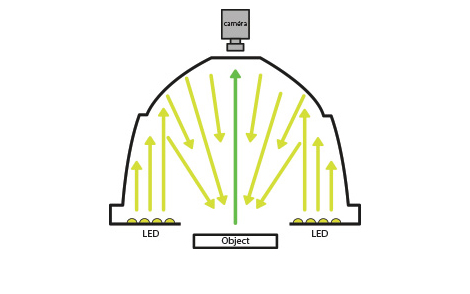

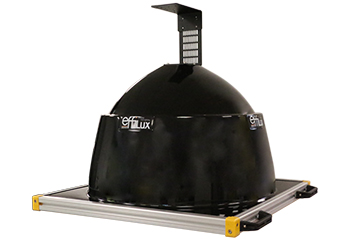

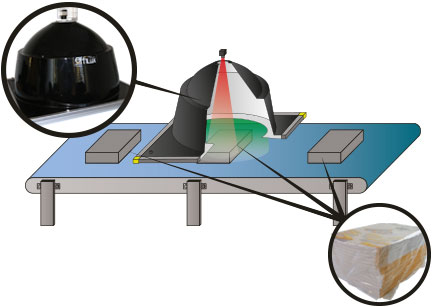

The MDOME is also available in a tricolor version.
- If RGB Bezeichnung : EFFI-MDOME-600-RGB-ELS-125-24V
- So general tricolor Bezeichnung : EFFI-MDOME-600-ZZZ-ZZZ-ZZZ-ELS-125-24V
Please note, in the three-color version, the EFFI-MDOME is only available in the ELS-125 dimmable electronic version.
Die Zeichnungen und das Gewicht der Produkte finden Sie auf der Seite mit den technischen Unterlagen.

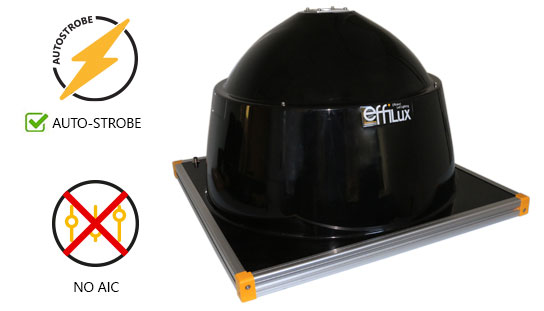

- AutoStrobe version (Standard) -
> Steckverbinder
The EFFI-MDOME is supplied directly with 24V DC via an M12 - 5 pin connector. Note that the trigger pin must be connected either to the 24V DC signal for continuous mode, or to a PNP trigger signal for overdrive strobe mode.
Zahlenstift
Bezeichnung
Kabelfarbe
1
+24V
Braun
2
N/A
Weiß
3
GND
Blau
4
TRIGGER PNP
Schwarz
5
N/A
Grey
> How the AutoStrobe works
> Option: NPN connection
On request, Effilux can wire the pin 2 of the M12 connector for use in NPN [trigger on falling edge] for the AutoStrobe. In this case, Lighting on if VNPN < 1.5V DC.
Bezeichnung : EFFI-MDOME-600-ZZZ-NPN
- Option : AIC version (ELS mode) -
The standard product (AutoStrobe) is not dimmable, EFFILUX offers an alternative electronic configuration suitable for continuous use and linescan applications. This version allows the intensity to be controlled according to the input signal (AIC): ELS Mode.
> Connection
The EFFI-MDOME is supplied directly with 24V DC via an M12 - 4 pins.
Zahlenstift
Bezeichnung
Kabelfarbe
1
+24V
Braun
2
N/A
Weiß
3
GND
Blau
4
AIC
Schwarz
5
N/A
Grey
> So funktioniert AIC
Control of the output intensity according to the input AIC signal
Bezeichnung : EFFI-MDOME-600-ZZZ-ELS-VVV-UUU VVV : output current (100%), default 350.
More powerful versions are also available, requiring special cooling, contact Effilux for more information.
UUU : DIM control range (5V, 10V or 24V)
Version ELS-IN: Inverse version (max of intensity to DIM = 0V)
- Option: Power Version -
Standard Version
Power Version ("PWR")
If Power version, add -PWR at the end of the part number.
Use with a duty cycle ‹ 30% mandatory.
