EFFI-Line is a linear LED light for short-range linear inspection applications.

The luminance on the diffuser is perfectly homogeneous and extremely powerful. This quality of light makes EFFI-Line the ideal product for linear inspection applications on reflective or transparent surfaces.

  • High power and homogeneity.
  • Integrated driver with AIC function which allows you to control the output power. automatically increases power by 300% in overdrive mode, compared to continuous mode.
  • Robust design for applications in complex environments.

effi-line homogeneous and powerful linear led lighting for industrial vision and quality control

- Build your part number -

EFFI-LINE

- - -
Optical length Available wavelengths (nm) Lens position
Available options Refer to the detailed information below for any specific reference (with options, customized, ...).

- Product information -

- Optische Länge -


XXX : optical length (mm) 100 200 300 400 500 In steps of 100 Max 2900*
Product lengths 132mm 232mm 332mm 432mm 532mm ... 2932mm

* In standard time. For any length beyond (Up to 6m): Contact Effilux


Part number : EFFI-LINE-XXX-...


- verfügbare Wellenlängen -


Color UV Blue Green Red IR White
(T°= 5500K ± 500K)
ZZZ : wavelength (nm) 405 465 525 625 850 000

Part number : EFFI-LINE-XXX-ZZZ...


- Lens position -


Configuration 1 (standard)

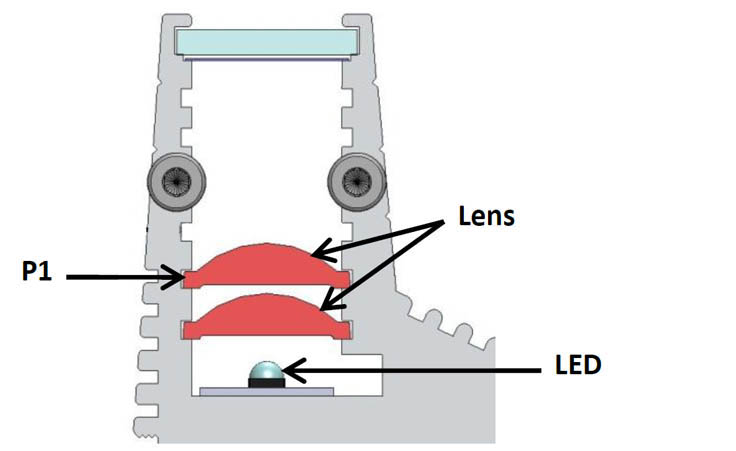

Diagram representing the interior of an EFFI-Line showing the configuration and the position of the lenses in the lighting | In this example, the lens is in position 1.
Configuration 2

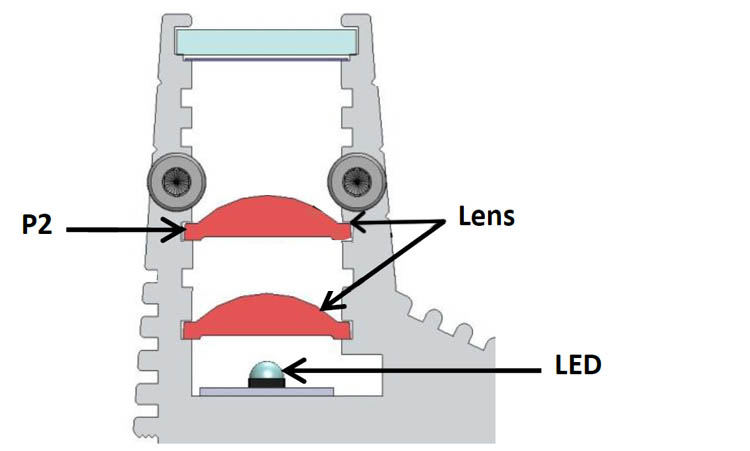

Diagram representing the interior of an EFFI-Line showing the internal configuration of the lighting as well as the position of the lenses | In this example, the lens is in position 2.

The EFFI-Line has two manually adjustable lens positions to change the emission angle.

Part number : EFFI-LINE-XXX-ZZZ-PP

logo infoIf not specified, position P1 by default.
EFFI-LINE is offered with a transparent window and a default linescan (TR-LS)


Die Zeichnungen und das Gewicht der Produkte finden Sie auf der Seite mit den technischen Unterlagen.

- EFFI-Line -

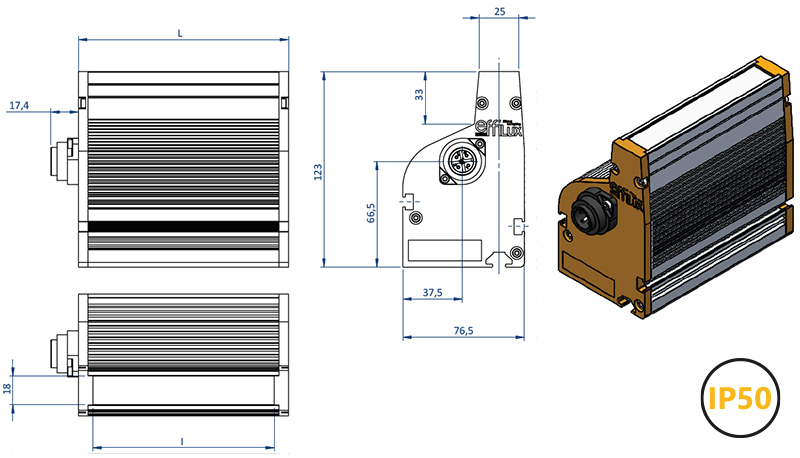

Diagram detailing the various components and their dimensions of an EFFI-Line used for machine vision and quality control.

The EFFI-LINE is fitted with a T-NUT M6 groove on the back and two NUT M6 grooves on each side. Effilux offers compatible fixing accessories.

- Anschlusss -

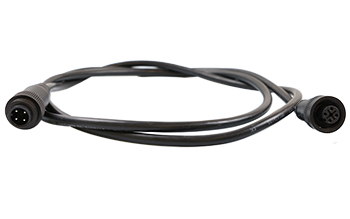

The EFFI-Line is supplied directly with 24V DC via an RD24, or Jaeger, depending on the power consumption of the product. Attention, the AIC pin must be connected.

Pin number Cable number RD24 Jaeger cable color Designation
1 1 Brown +24V
2 2 Blue AIC: Analog intensity control
3 3 Black GND
4 Yellow / Green X N/A

logo infoRefer to the technical sheet for details of the electrical consumption of each EFFI-Line.


- AIC control -


Graphic representing the light produced by an Effi-FLEX-BL as a function of the current received thanks to an AIC pin - Used for machine vision and quality control

EFFI-Line V2 is powered by a 24V DC source.

By using the DIM pin, the light intensity can be increased linearly:
• 0V - OFF
• 24V - Full ON

- Option: Power version -



Standard version


Power version ("PWR")


logo infoIf Power version, add -PWR in the reference.
The Power version has an active cooling system (fans)

Part number: EFFI-LINE-PWR

- Mechanische Zubehör -

- elektronische Zubehör -

- On demand -

Multispectral version

Polarized version

Other positions of connector


For all other requests contact EFFILUX.
