Machine Vision
3D

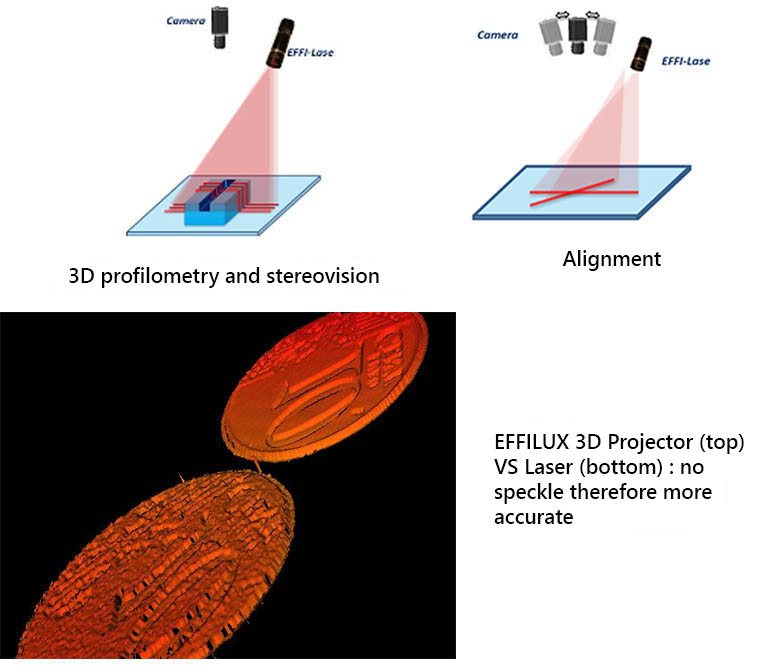

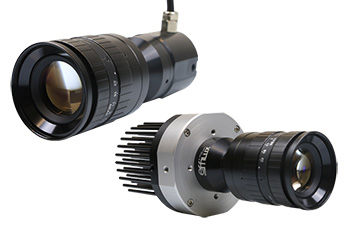

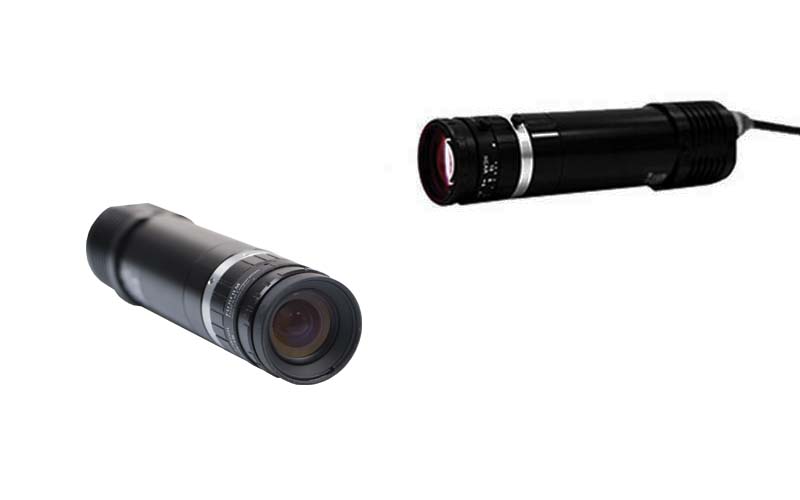

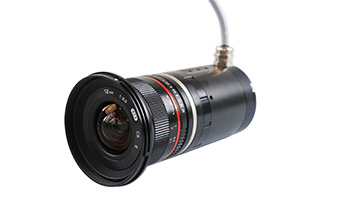

Designed for 3D reconstruction, stereovision, and alignment applications, EFFILUX pattern projectors are a true plug and play alternative to lasers—without the speckle and stability drawbacks. They can project powerful and highly precise patterns such as lines, crosses, and point clouds.
Learn more about our 3D lightings
How does 3D lighting work?
3D lighting works by projecting controlled light patterns onto an object and analyzing how they are reflected or deformed.
Depending on the technique, this can include:
- projection of structured patterns (lines, grids, points)
- multi-angle illumination to highlight height variations
- stereovision systems combining multiple viewpoints
What are the typical applications of 3D lighting?
3D lighting is essential for applications where geometry and positioning must be precisely controlled.
Typical use cases include:
- 3D reconstruction and shape analysis
- alignment and positioning systems
- dimensional measurement and metrology
- detection of deformation, warping, or height defects
- robotic guidance and pick-and-place applications
What 3D lighting solutions does Effilux offer?
Effilux offers advanced pattern projection lighting solutions specifically designed for 3D vision systems.
These pattern projectors are:
- designed for 3D reconstruction, stereovision, and alignment applications
- capable of projecting highly precise patterns such as:
- lines
- crosses
- point clouds
What are the advantages of Effilux pattern projectors compared to lasers?
Effilux pattern projectors are a powerful alternative to traditional laser-based solutions.
Key advantages include:
- plug and play integration into vision systems
- no speckle effect, unlike laser projection
- higher stability and repeatability
- more uniform illumination
- ability to project complex structured patterns
