LED bar light with a ZB zebra strip mask

- Description -

The zebra mask ZB from EFFILUX is the ideal mask for metrology and deflectometry to reveal defects (stripe, impact, or positioning, etc) on reflective / transparent surfaces /
or semi transparent.

The goal of ZB lighting is to provide maximum contrast so that machine vision software can evaluate and make necessary judgment. On the image, the defect will be revealed in white on black.

difference between two images. one with zebra technology and the other without

> Control reflection of reflective surfaces (metallic, polished, etc)

It is important to pay special attention on lightings when inspecting objects with reflective surfaces. Reflections disrupt good images acquisitions and cause difficulties to identify defects. :

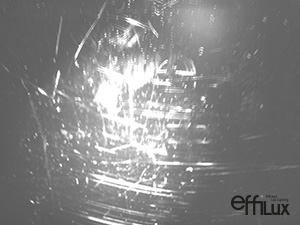

Typical images of objects with reflective surfaces

Machine vision systems are unable to process these unsatisfactory images with reflections and making it impossible to detect the defects (eg: scratch size, etc.).

Image with zebra mask ZB:

Photo of a non-compliant part lit by ZB lighting

With zebra mask ZB, the lighting will be oriented and able to create light pattern. => The pattern becomes deformed when there are dents or bumps.

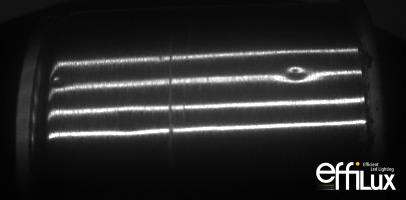

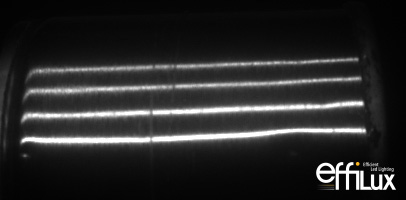

Horizontal stripes without defect	Horizontal stripes with defect (dent)

The size of the pattern (just like its geometry) must be adapted to the type of inspections and defects, we would be glad to assist you to define the suitable pattern.

> Transmission control of a transparent surface (eg. glass or plastic inspection):

This mask could help the image processing system to obtain following types of images during glass inspection:

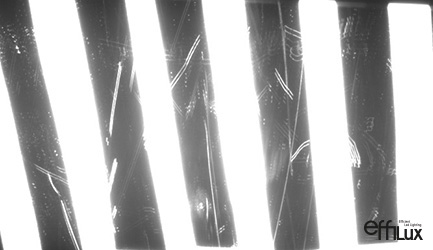

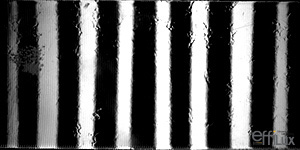

Plastic		Glass With defect: Scratches

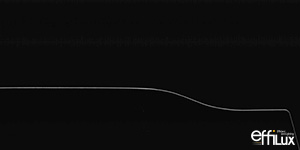

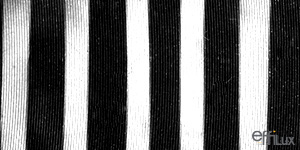

With defects	Without defect	Glass With defect: Scratches

- Related Products -

	Linear application	Matrix Application	Customization
Part number	EFFO-FLEX-TR-ZB-XX-ZZ*	EFFO-BL-XXX-YYY-ZB-TR-ZZ**	To have zebra mask on another EFFILUX product, please contact us.

* XX : Number of LEDs
** XXX-YYY : Optical length and width
ZZ: Thickness of the zebra mask
